S6803-2RS Stainless Steel Sealed Bearing 17x26x5mm Metric Ball Bearings S61803-2RS



ItemS6803-2RS Stainless Steel Sealed Bearing 17x26x5mm Metric Ball Bearings S61803-2RS
FeatureHigh Precision, High Speed and Rust Proof
Model No

S6803ZZ, S6803-2Z, S6803 2RS, S6803RS, SS6803-2RS, S61803-2RS, S61803ZZ

Sizes(mm)

17x26x5mm

MaterialAISI420 stainless steel, AISI440 Stainless steel
Sealed TypeOpen, ZZ, 2RS
PrecisionABEC-1, P0 precision
ClearanceC0, C2, C3, C4
ApplicationS6803-2RS Stainless Steel Sealed Bearing 17x26x5mm Metric Ball Bearings S61803-2RS
Packing10pcs / plastic tube+White small box+Carton+Pallet
LubricationGrease, Dry Lube or Oil


Bearings: S6803-2RS Ball Bearing
Closures: 2 Metal Shields & 2RS Rubber Seals
Lubrication: Self Lubricated (Grease)
Dimensions: 17mm x 26mm x 5mm
ID (inner diameter)/Bore: 17mm
OD (outer diameter): 26mm
Width/Height/thickness: 5mm
Material: SUS420 Stainless Steel
Size: 17x26x7mm
Equal: SS6803 2Z & SS6803-ZZ, S6803-2RS, S6803RS, S61803-2RS
Weight: 0.008kg

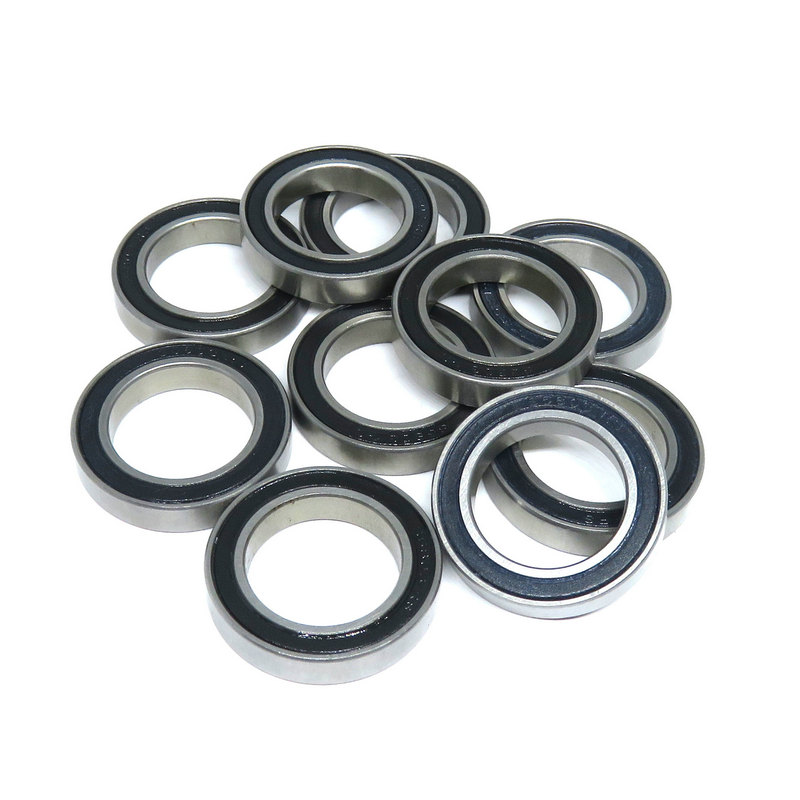

S6803-2RS Stainless Steel Sealed Ball Bearing, Bearing is made of Stainless Steel, each bearing is rubber sealed from both sides to protect the bearing from dust or any possible contamination, also bearing is pre-lubricated with grease.


Application: S6803ZZ S6802-2RS bearing is widely used in cars, compressors, construction, electric motors, food industry, home appliances etc.



Stainless steel ball bearings widely used in kitchen appliance, shower bathroom, door and window which near the sea,  rowing boat,  food machinery, chemical machinery and clearing machine, etc.



S6803-2RS Stainless Steel Sealed Bearing 17x26x5mm Metric Ball Bearings S61803-2RS
